Product Description

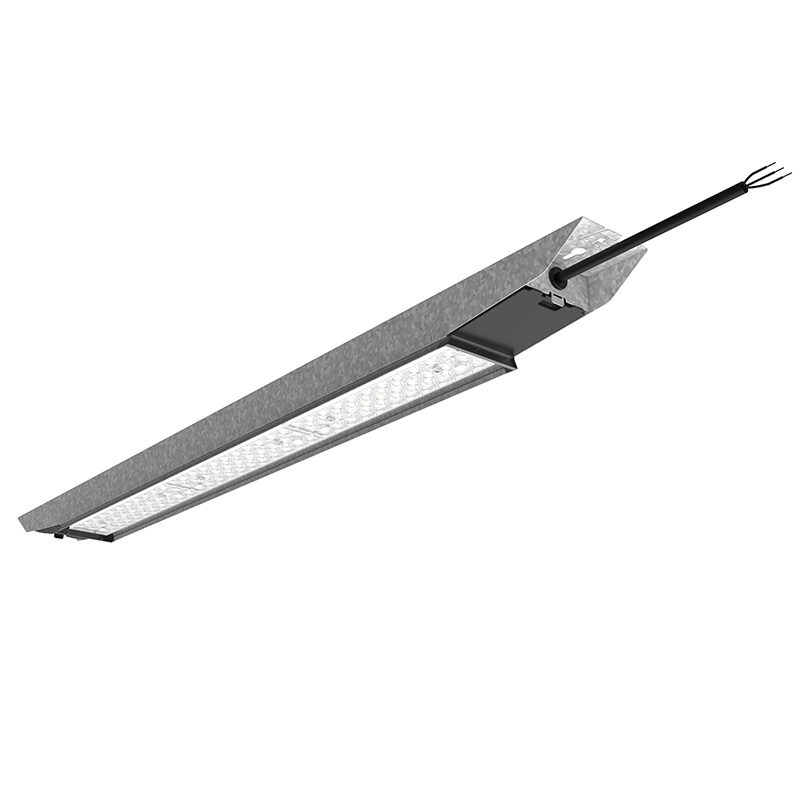

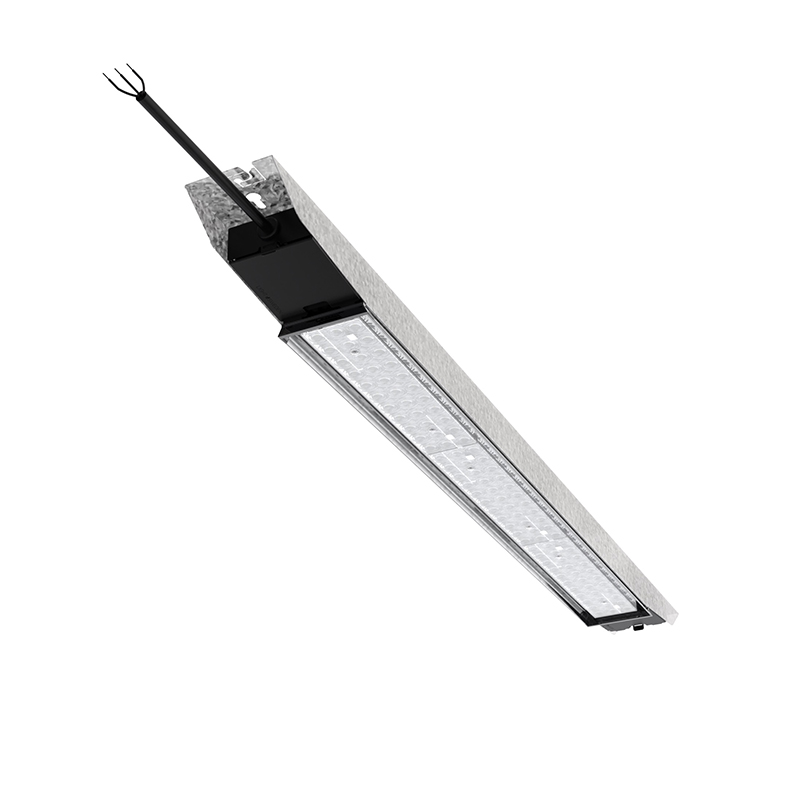

INNO-TECH'S L23 Linkable LED industrial linear light is designed to provide exceptional illumination for various work environments, this cutting-edge lighting solution offers a perfect blend of efficiency, versatility, and reliability.

One of the standout features of the L23 linkable led industrial linear light is its linkable functionality. This allows for easy installation and customization, enabling you to connect multiple lights together to create a seamless lighting system tailored to your specific needs. Whether you require lighting for a small workshop or a large industrial facility, the L23 offers the flexibility to expand and adapt as your workspace evolves.

Efficiency is at the core of the L23 Linkable LED Industrial Linear Light. By leveraging energy-efficient LED technology, it significantly reduces power consumption compared to traditional lighting options. Not only does this translate into substantial cost savings, but it also contributes to a greener and more sustainable environment.

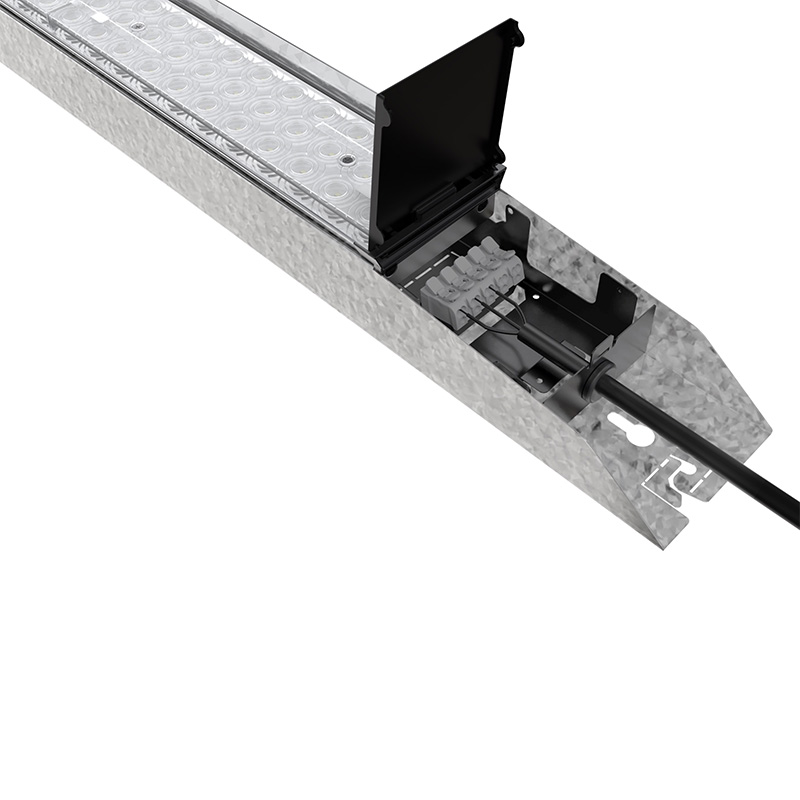

Thanks to the design on the entire light engine replaceable ,it would be easier for maintenance for long time using to compare with common linear light .


Product CodeIT-L23-75WIT-L23-90WIT-L23-120W
Power75W90W120W
Input Voltage200-240VAC/100-277VAC (50/60HZ)
Input Current0.35A@220VAC0.45A@220VAC0.6A@220VAC
PF0.90@220VACV/Dali
Dimming OptionDail
RA>80CCT3000K/4000K/5000K/6000K
Efficiency11250Lm/W±5%13500Lm/W±5%18000Lm/W±5%
LEDs Type2835/3030
Beam Angle30°60°90°
Storage Temp-20℃~+40℃
Operation Temperature-20℃~+60℃
Life SpanTa 40℃ L70>54000Hours
IP ClassIP23
IK ClassIK08
CertificateCE, RoHS
Lamp Body ColorPainted(Ral 9006) Galvanised steel; LED Body: Extruded Aluminium
Product Size ( mm )1230*94*661800*94*661800*94*66
Packing Size ( mm )1270*241*2601840*241*1851860*241*185
Quantity / Carton6pcs4pcs4pcs
Gross Weight ( kg ) ± 0.319.8819.8419.84
InstallationSurface Mount & Suspenion Mount


    •High lumens efficiency 170lm/w or 150lm/w optional
    •Osram or Philips driver
    •Lumileds/Epistar 3030 SMD LED, world famous brand
    •Entire light engine is replaceable ,easy for maintenance
    •ADC12 aluminum die-casting housing, perfect heat dissipation
    •Avaliable with 60°/90°/120° beam angle
    •3000L/4000K/5000K/5700K6500K CCT
    •Long life span, L70>50,000 Hours
