• Die custing alumium with air convection design ,excellent heat dissipation
• Anti-dust design maintains stable thermal performance and prolongs lifespan.
• System efficiency up to 170lm/W,energy saving
• Sosen Driver & Lumileds 3030
• 100W,120W,150W,200W ,240W optional
• Sensor optional
• Various optical designs to fit different applications
• IP65 waterproof,dust, corrosion and pressure-proof; for indoor use
• Energy Efficiency Grade: A+
• Quick Start instant 100% luminous flux
• 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
• Certificate: CE,RoHs Certified
• Surface Mount or Suspended

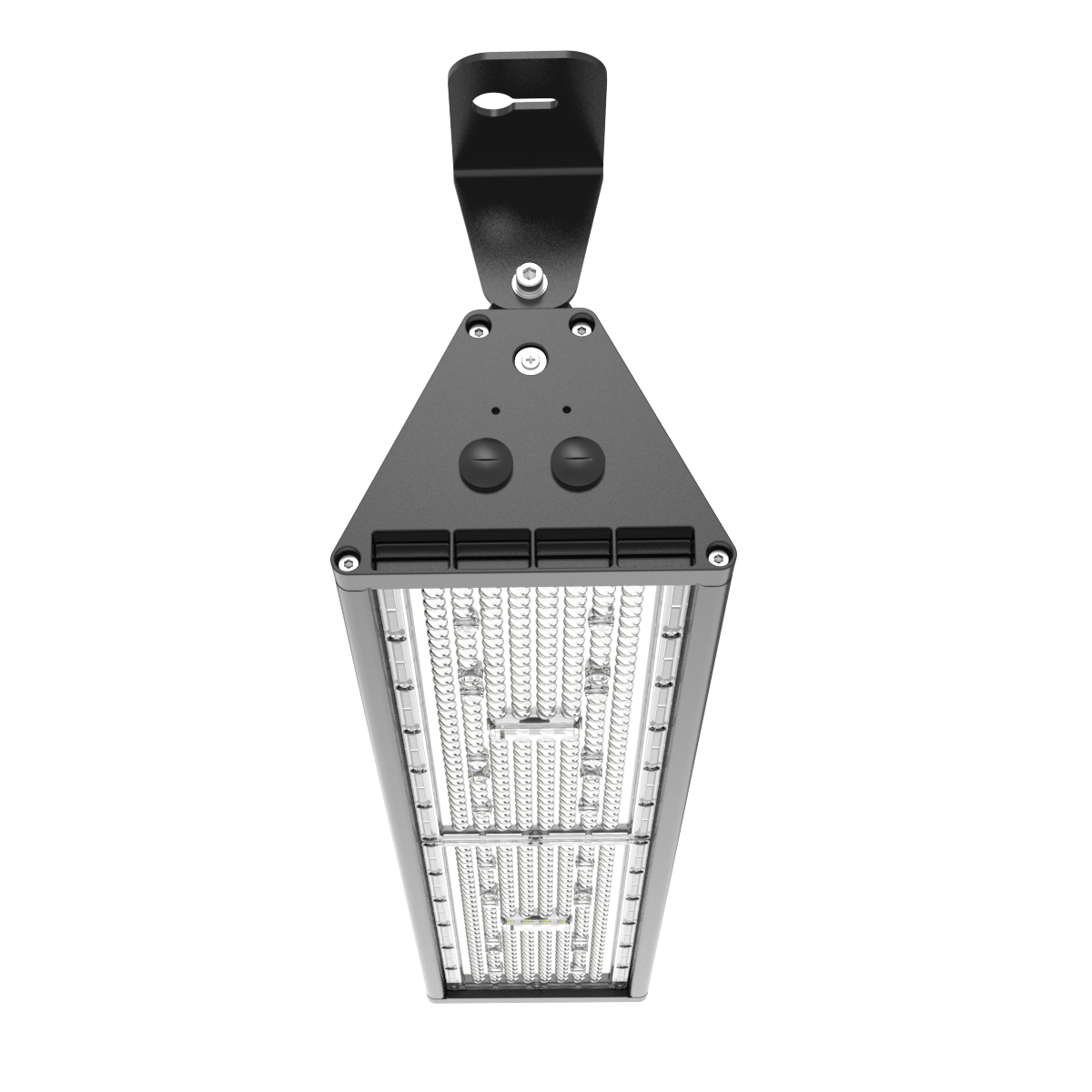

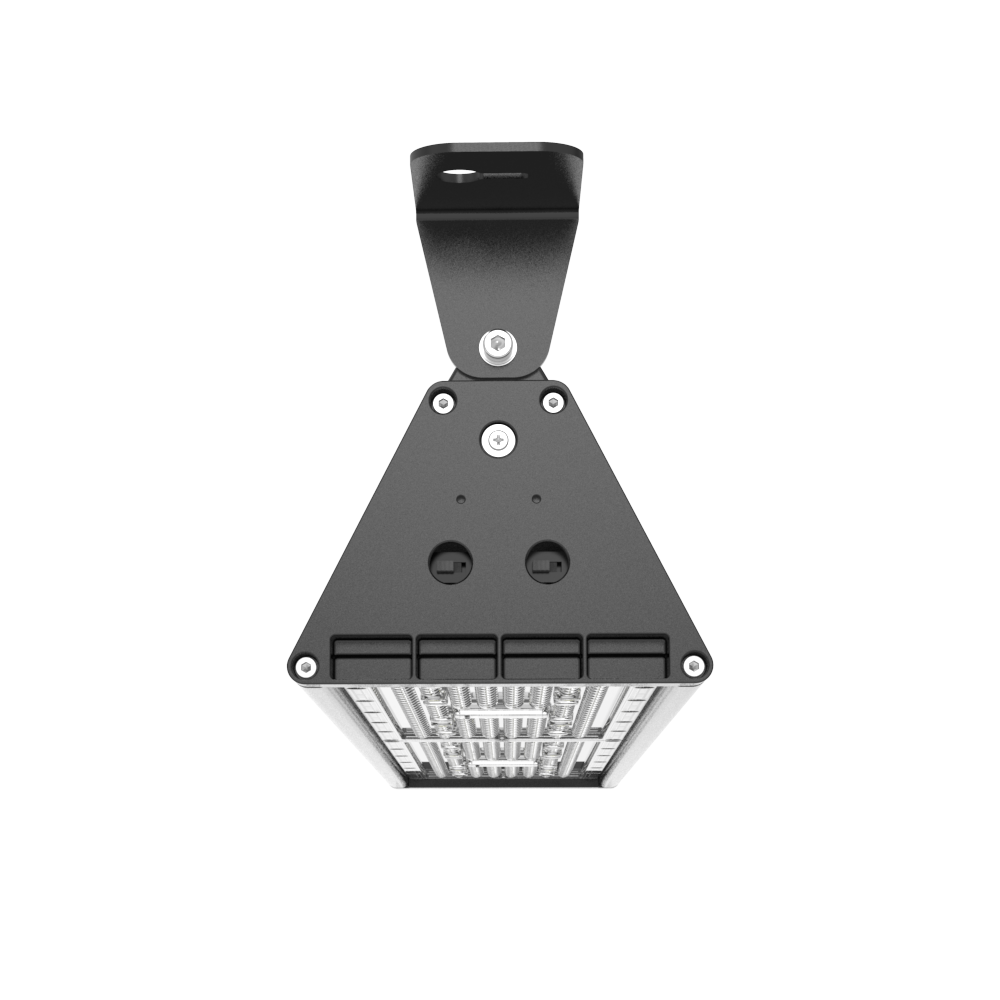

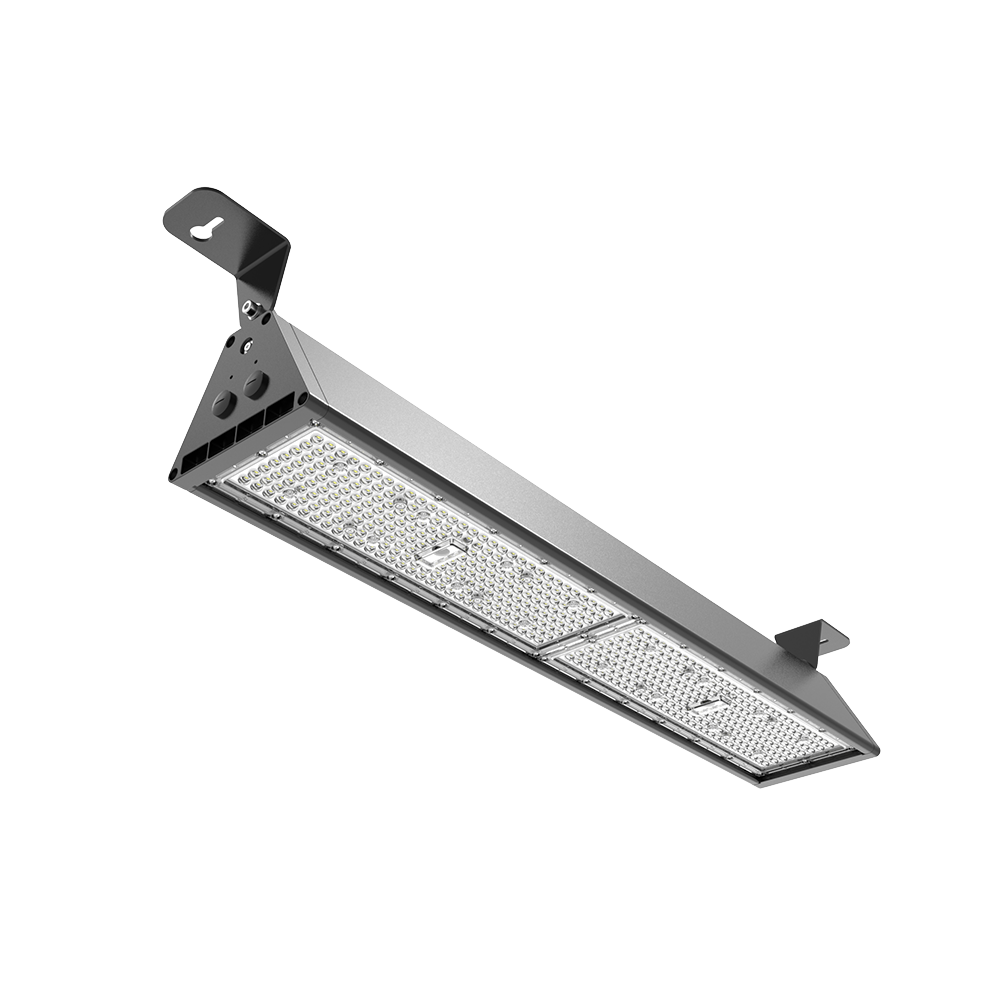

INNO-TECH Easy-Clean LED Linear Highbay is a high-efficiency linear lighting solution designed for industrial environments that demand both strong performance and easy maintenance. With up to 240W power and 170 lm/W efficacy, it delivers bright, stable illumination while helping reduce energy costs. The easy-clean design minimizes dust and contamination build-up, supporting reliable thermal performance and extending service life. Featuring a multi-angle optical design and flexible mounting options, this LED linear highbay is suitable for a wide range of applications—especially food processing, warehousing, logistics, workshops, and other dusty or demanding facilities.
| Model No | IT-CHB- 100W | IT-CHB-120W | IT-CHB-150W | IT-CHB-200W | IT-CHB-240W |
| Input Power | 100w | 120w | 150W | 200W | 240W |
| Dimension | 391.7*140.1*120.3mm | 391.7*140.1*120.3mm | 754.3*140.1*120.3mm | 754.3*140.1*120.3mm | 754.3*140.1*120.3mm |
| CCT | 3000K/4000K/5000K/5700K | 3000K/4000K/5000K/5700K | 3000K/4000K/5000K/5700K | 3000K/4000K/5000K/5700K | 3000K/4000K/5000K/5700K |
| CRI | Ra70 /Ra80 | Ra70 /Ra80 | Ra70 /Ra80 | Ra70 /Ra80 | Ra70 /Ra80 |
| Dimming | 1-10V dimming / Dali dimming | ||||
| PF | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| IP Grade | IP65 | IP65 | IP65 | IP65 | IP65 |
| Input Voltage | 120-277V 50/60Hz | 120-277V 50/60Hz | 120-277V 50/60Hz | 120-277V 50/60Hz | 120-277V 50/60Hz |
| Lumens efficiency | 170lm/w or 150lm/w | 170lm/w or 150lm/w | 170lm/w or 150lm/w | 170lm/w or 150lm/w | 170lm/w or 150lm/w |
| Beam Angle | 30x70° / 60x90° / 40x110° 60x110°/ 80x110° | ||||
| Working Temp& Humidity | -20°-45° & 20～95% RH No condensation | ||||
| Installation Mode | Rope/Bracket Mount | Rope/Bracket Mount | Rope/Bracket Mount | Rope/Bracket Mount | Rope/Bracket Mount |
| Warranty | 5 years | 5 years | 5 years | 5 years | 5 years |
| Lifespan | 50,000hours | 50,000hours | 50,000hours | 50,000hours | 50,000hours |

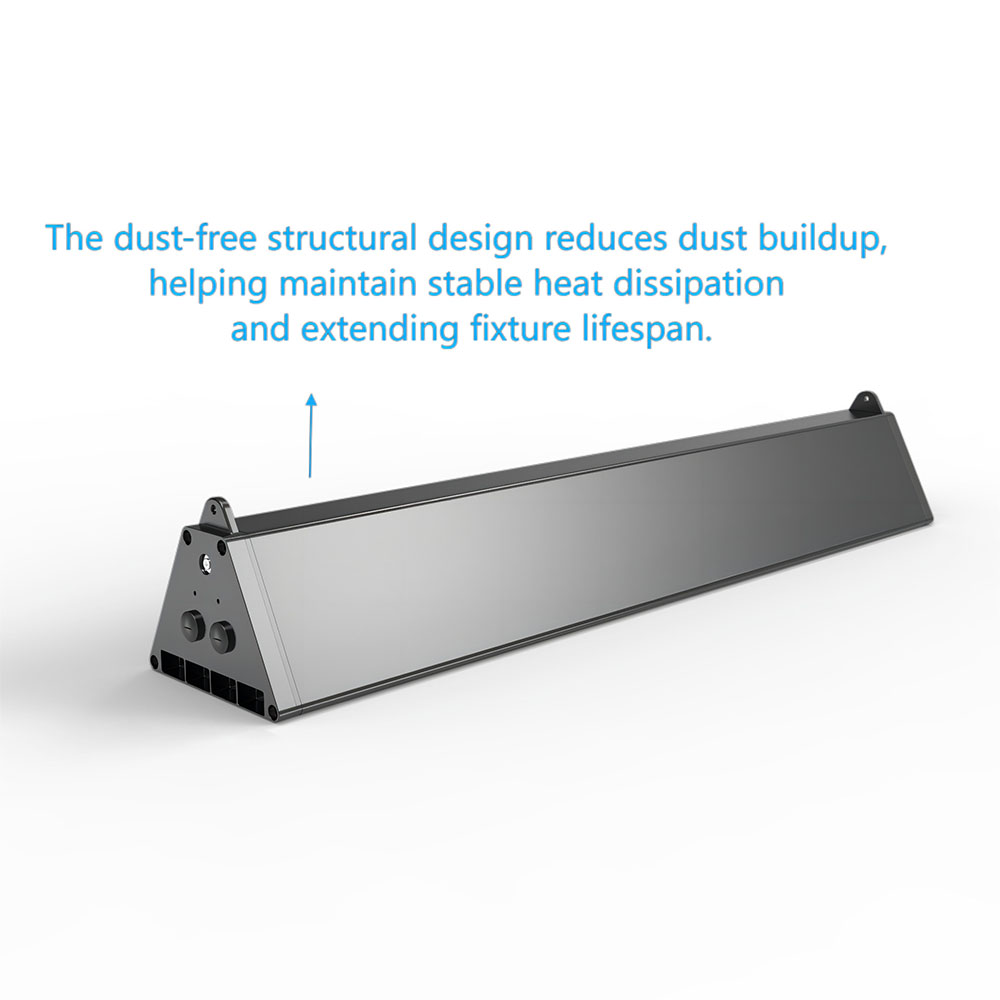

Easy-Clean LED Linear Highbay is with dust-free design ,easy for maintenance .

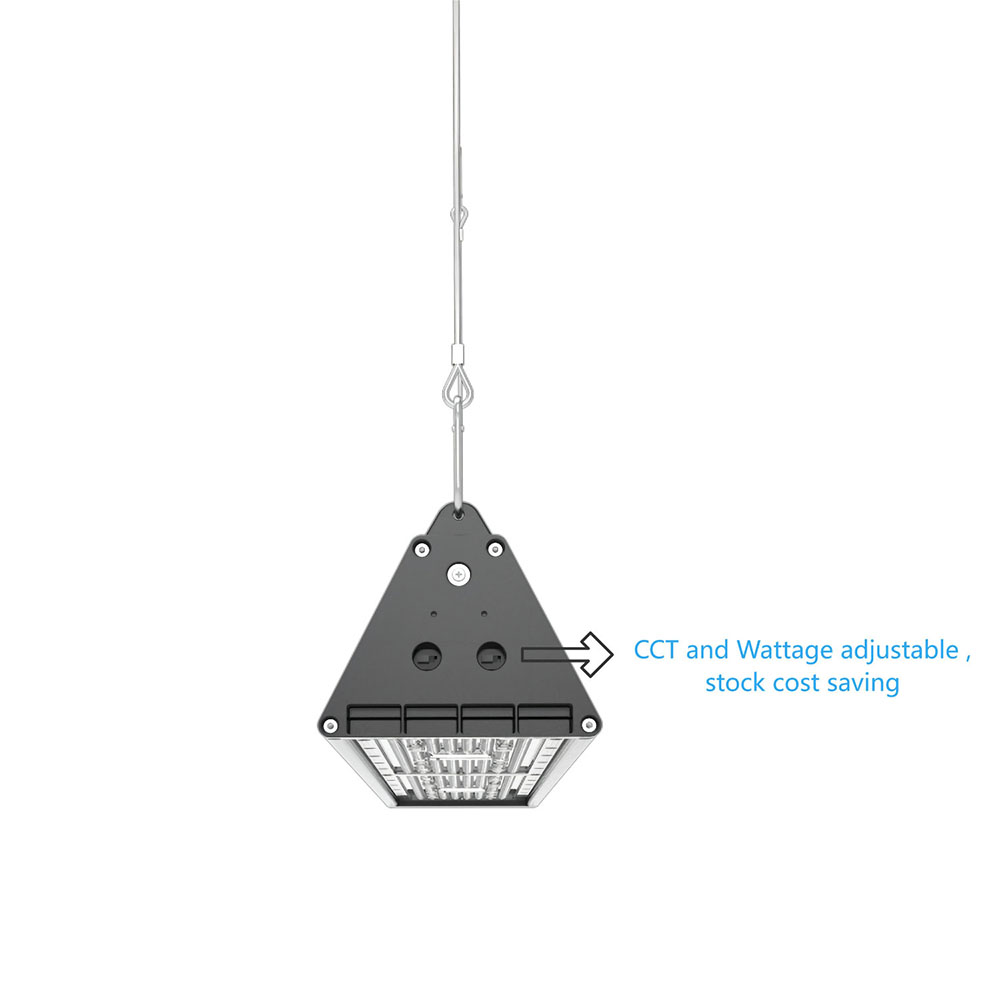

Easy-Clean LED Linear Highbay is with dip design ,with CCT and wattage adjustable to help saving stock cost .
